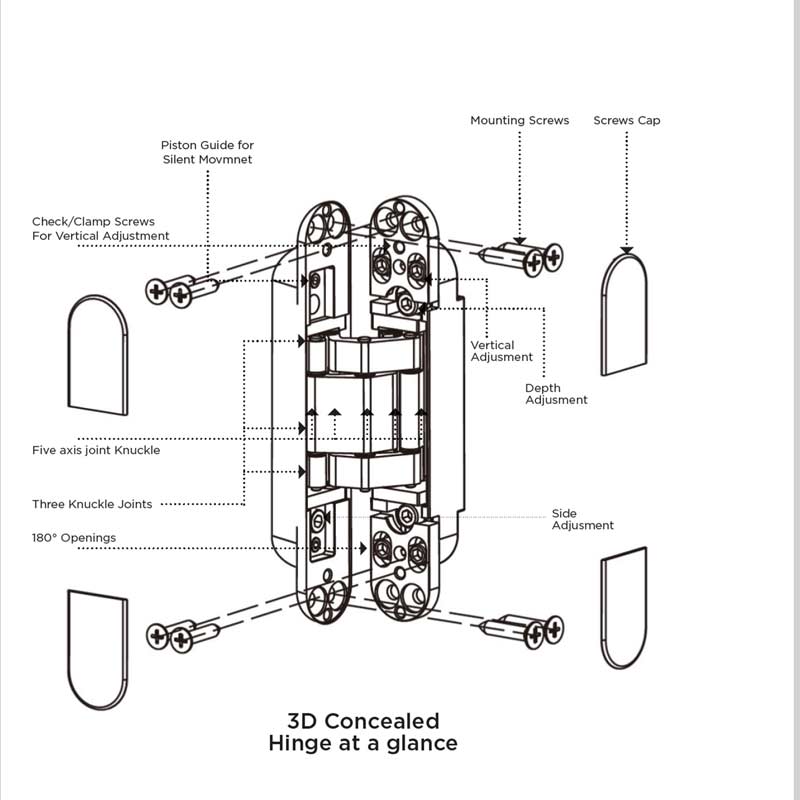

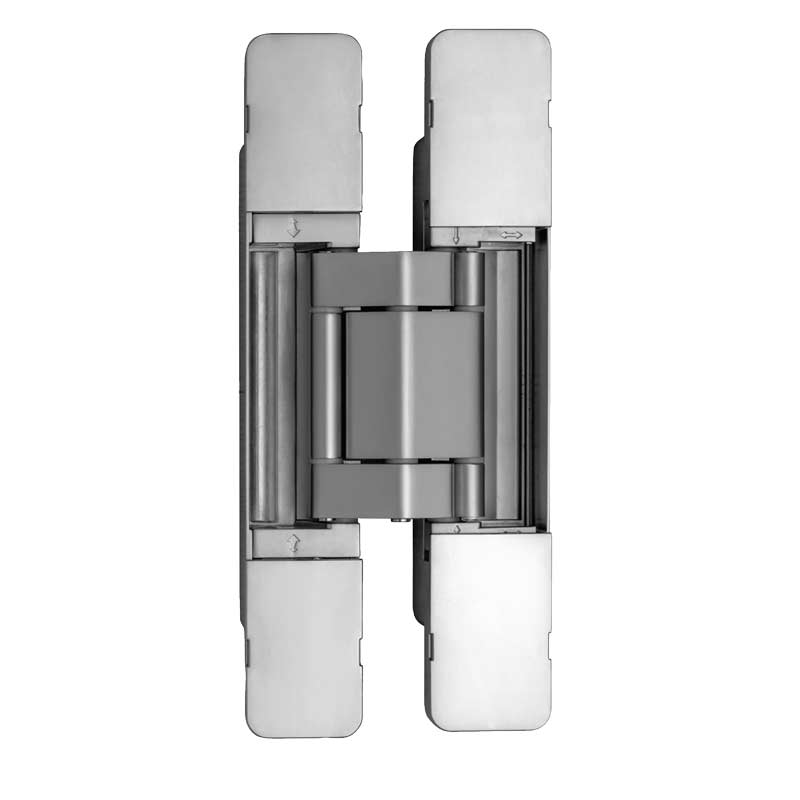

Concealed 3D door hinge for 60mm door
OZ-3D-ACH-40
180 Degree Open
Smooth Action
FIRE RATED
120 KGS RATED
- Fully concealed hinge system
- Applications for timber, steel, or aluminium frames
- For unrebated and rebated flush residential doors
- Sideways closed hinge body for a homogeneous flush appearance
- 3D adjustment (Height +/- 3 mm, Depth+/- 2 mm, Widht +/-1 mm)
- Silent operations with Piston Mechanism
Technical Specifications
- Load Capacity 40 kg (2 Nos.)
- Maximum Door Width 850mm
- Minimum Door Thickness 35mm
- Hinge Dimensions 150mm(H), 25mm (W), 22.5mm (D)
- Cutting Diameter 20mm • Suitable For DIN Left or DIN Right Hand
- Opening angle 180°
Installation Cut-Out for Wooden/Frame - Frame must be equipped with solid wooden packing
- Use M5 Screws
