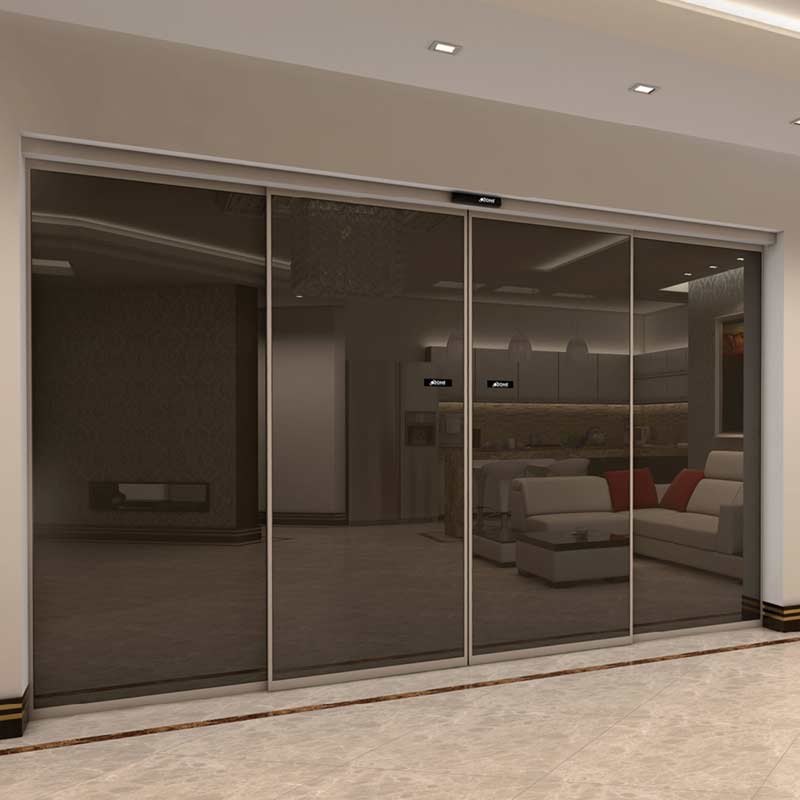

Airdrive World Slimmest Automatic Sliding Door System
PZPM-AD
Smooth Action
MADE FROM SS304 steel
3 YEAR REPLACEMENT WARRANTY
PREMIUM FINISH
- Manufactured as per ISO 9001:2000 standards
- CE conformity & compliant with EU Standards EN 16005, EN 60335, EN ISO 138491-2008 & German standard DIN 18650
- Exquisiteness combined with strength & soft performance
- Ability to work with 20% higher or lower than nominal input voltage
- Completely protected system input ports which reduces the damage risk due to human error during installation
- Self-diagnose and error detection
- Ability to automatically adjust speed and slopes according to input voltage change
- Best choice for professionals who wish to create pure beauty & graceful architecture
Technical Specifications
- Track/engine case: 68 x 135 mm (h x d)

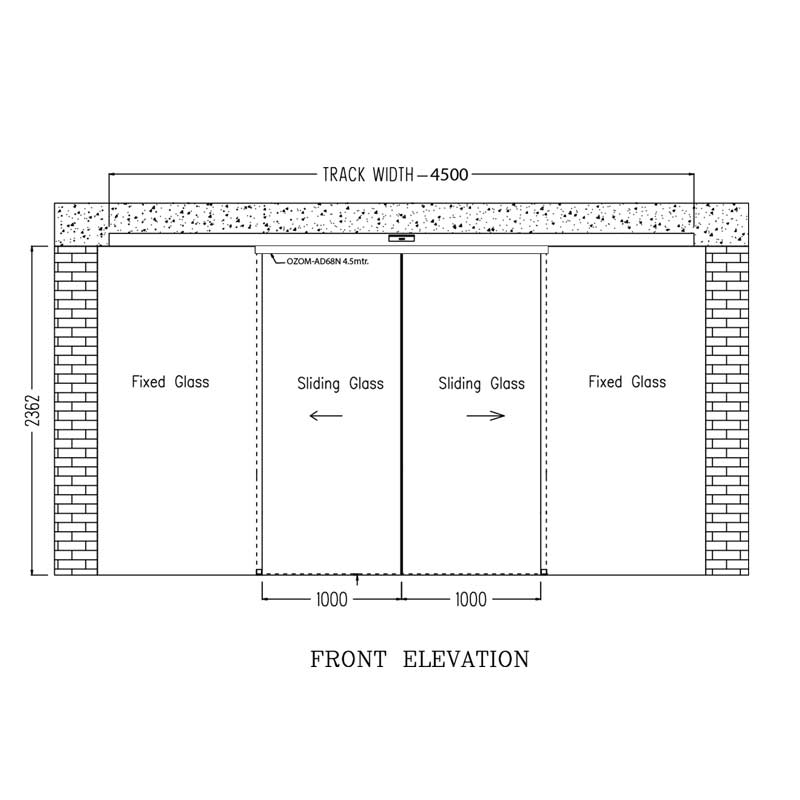

- Track length: 4.5 & 5.9 mtr
- Door type: automatic
- Single leaf door weight: 1 x 150kg
- Double leaf door weight: 2 x 120kg
- Maximum door opening width: 2000 mm for single panel & 3000 mm for double panel
- Motor: compliant with EU low voltage directives with maximum power consumption of 250W
- Opening speed: adjustable 100-550mm/sec
- Slimmest Track of 68mm height
Box Includes
- Sed ac lectus a magna mollis finibus
- Quisque imperdiet quam id lacus fermentum, eu hendrerit arcu sollicitudin
- Quisque sed nisi suscipit, ultrices purus malesuada, viverra nunc
- Nam a libero accumsan, suscipit justo sit amet, porta augue
- Morbi sed risus eu purus tincidunt aliquet eget et tellus
